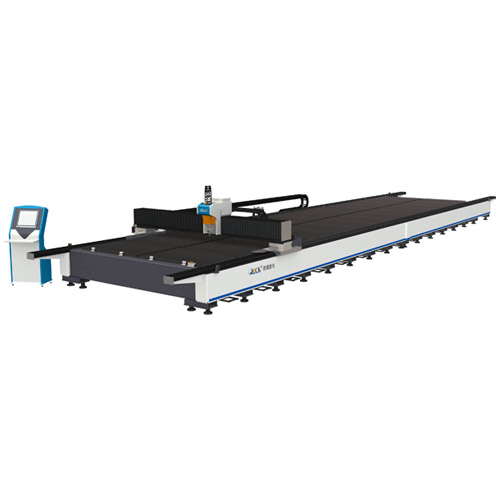

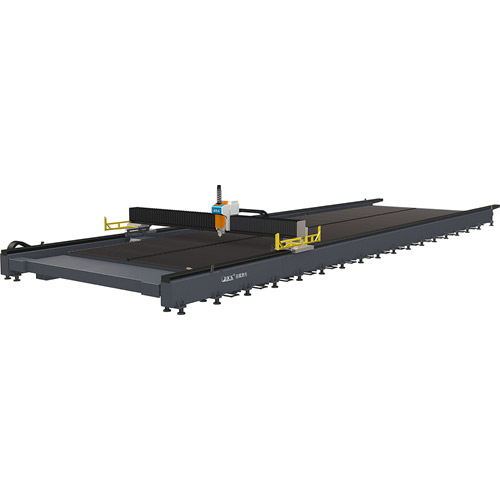

Laser Metal Cutter -R

HI series

Applications:

Rail Traffic
Car Industry
Sports Equipment
The Steel Sructure
Agricultural Machinery
Decoration Engineering
Engineering Machinery
Home Appliance Hardware

HI series products feature several patented technologies, such as hollow/semi hollow structure machine tools, boneless workbench structures, timesharing/zoning/segmented dust extraction structures and cutting head double cooling structure technology. Thick plate cutting efficiency has improved and remains more reliable. The new generation qh.spac intelligent cutting system boasts flexible operation, more perfect and intelligent functions, improved leapfrog speed and efficiency, fast intelligent perforation mode and fast intelligent knife receiving mode, as well as being configured with expert process databases more suitable for user use. Furthermore, convenient industrial intelligent interfaces such as intelligent remote cloud interfaces and transportation diagnosis modes further facilitate their use.

Hollow / semi hollow structure machine too
QH. Spac intelligent cutting system
Q-x series ultra-high power intelligent cutting head
Maximum machining length：12000mm
Maximum linkage speed：200m/min
Power Range：12000W-40000W

Technical data

TYPE	6020	6025	8025	2512
Power Range	6000W/8000W/12000W/15000W/20000W/30000W
Working Area (Length x Width)	6000mm×2000mm	6000mm×2500mm	8000mm×2500mm	12000mm×2500mm
X-axis Stroke	6050mm	6050mm	8050mm	12050mm
Y-axis Stroke	2050mm	2550mm
Z-axis Stroke	300mm
Repositioning Accuracy	±0.02mm
X/Y-axis Simultaneous Speed	200m/min
Maximum Acceleration	2.5G	2.5G	2G	1.5G
Workbench Bearing Capacity	5600KG	7000KG	9400KG	14000KG

Feature

High power small size
The new HI series combines power and compactness, and incorporates a range of patented technologies. These include large format hollow/semi-hollow structure machine tools with ultra-high power laser equipment, boneless worktable structures, time-sharing dust extraction structures with zone and segmented dust collection structure technology, and cutting head double cooling structure technologies. Compared to G series exchange worktable models, H series models offer more advantages in size design, providing customers with more options to suit their specific requirements.

High efficiency & High velocity
Featuring the independently developed qh.spac intelligent cutting system, the new HI series provides flexible operation with enhanced intelligent functions and improved results compared to its predecessor, the HI-1 series. It has significantly improved the speed and efficiency of its frog leaping function, added a fast perforation mode, as well as a knife retract mode, and runs smoothly and efficiently. It offers stable control up to 200m/min and sub-1mm ultra-precision cutting control.

Laser Metal Cutting Machine: A Comprehensive Guide

Laser metal cutting machines are an essential tool for modern manufacturing. They use laser technology to cut through metal sheets with precision and speed, making them ideal for a wide range of applications.

How Laser Metal Cutting Machines Work

Laser metal cutting machines use a high-powered laser beam to melt and vaporize metal sheets. The laser beam is directed by a series of mirrors and lenses to the cutting area, where it creates a narrow kerf in the metal. This kerf is so small that it is almost invisible to the naked eye, which allows for extremely precise cuts.

Benefits of Laser Metal Cutting Machines

Laser metal cutting machines offer several benefits over traditional cutting methods. Some of the most significant benefits include:

Precision: Laser metal cutting machines can cut through metal sheets with incredible precision, allowing for intricate designs and shapes.
Speed: Laser metal cutting machines can cut through metal sheets much faster than traditional cutting methods.
Versatility: Laser metal cutting machines can cut through a wide range of materials, including metals, plastics, and even wood.
Safety: Laser metal cutting machines are much safer than traditional cutting methods, as there is no direct contact between the cutting tool and the material being cut.

Applications of Laser Metal Cutting Machines

Laser metal cutting machines are used in a wide range of industries, including automotive, aerospace, and electronics. Some of the most common applications of laser metal cutting machines include:
